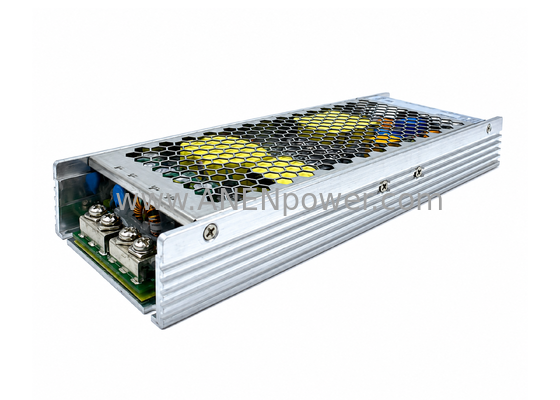

800W Enclosed AC/DC Switching Power Supply Single Output 12V 15V 24V 36V 48V Industrial Power Supply Unit

800W Enclosed AC/DC Switching Power Supply Single Output 12V / 15V / 24V / 36V / 48V Industrial Power Supply Unit

The 800W Enclosed AC/DC Switching Power Supply is a high-capacity, industrial-grade power infrastructure unit engineered to deliver continuous, heavy-duty DC power to demanding automation networks, manufacturing systems, and high-load industrial machinery. Housed in a rugged, fully enclosed low-profile metal chassis, this power supply unit (PSU) incorporates an intelligent, temperature-controlled cooling fan that dynamically adjusts its speed to maintain optimal thermal thresholds, ensuring long-term component reliability even under 100% continuous duty cycles.

Available in dedicated, factory-configured single-output models (12V, 15V, 24V, 36V, or 48V), this versatile power platform features a high-grade circuit topology designed to easily handle massive peak current demands and heavy inductive or capacitive loads. Built-in active Power Factor Correction (PFC) maximizes energy efficiency and ensures full compliance with international harmonic current regulations. Equipped with an industrial-tier defense matrix—including short-circuit, over-load, over-voltage, and over-temperature safety cutoffs—this PSU guarantees absolute system protection and minimizes downtime for mission-critical industrial workflows.

Key Specifications

• Total Rated Power: 800W continuous output capability

• Available Single Output Options:

  • 12V DC / 66.6A

  • 15V DC / 53.3A

  • 24V DC / 33.3A

  • 36V DC / 22.2A

  • 48V DC / 16.6A

• Voltage Trim Range: Built-in onboard potentiometer allows $pm10%$ manual voltage adjustment to compensate for line drops

• Input Voltage Range: Universal 90–264V AC or 127–370V DC (Wide input range safeguards against voltage fluctuations)

• Power Factor: Active PFC ($PF > 0.95$ at full load) for optimal power grid utilization

• Cooling System: Forced-air cooling via dual long-life, ball-bearing DC fans with intelligent thermal speed control

• Dielectric Strength (Isolation):

  • Input to Output: 3,000V AC

  • Input to Case (Ground): 2,000V AC

  • Output to Case (Ground): 500V AC

• Protections: Short Circuit / Overload (Constant current limiting, auto-recovery) / Over Voltage / Over Temperature

• Safety & EMC Standards: UL 62368-1, EN62368-1, CB, CE, FCC, RoHS Compliant

• Mechanical Design: Heavy-duty, fully enclosed galvanized steel frame with robust, high-current M5 bus-bar/screw terminal blocks

Industrial Applications

• Heavy Machinery & Factory Automation: Directly drives high-current 24V or 48V multi-axis PLC racks, industrial robotic cells, automated assembly lines, and high-power pneumatic solenoid arrays.

• CNC Machinery & Servo Drive Systems: Provides a highly stable, non-dropping voltage source for high-torque stepper motor drivers, main spindle controllers, and industrial laser cutting heads that draw massive dynamic current surges.

• Large-Scale LED Display & Signage Backbones: Powering massive, high-brightness outdoor LED video walls, architectural matrix lighting systems, and complex stadium displays requiring raw, low-voltage power.

• Telecom, Networking & Datacom Hubs: Serves as a rugged, low-noise primary power rail for remote 48V cellular base stations, high-capacity network routing switches, and specialized radio transceiver banks.

• Industrial Electrolysis & Test Equipment: Acts as a stable, high-current DC source for laboratory aging systems, automated test equipment (ATE) setups, plating processes, and battery charging test benches.
